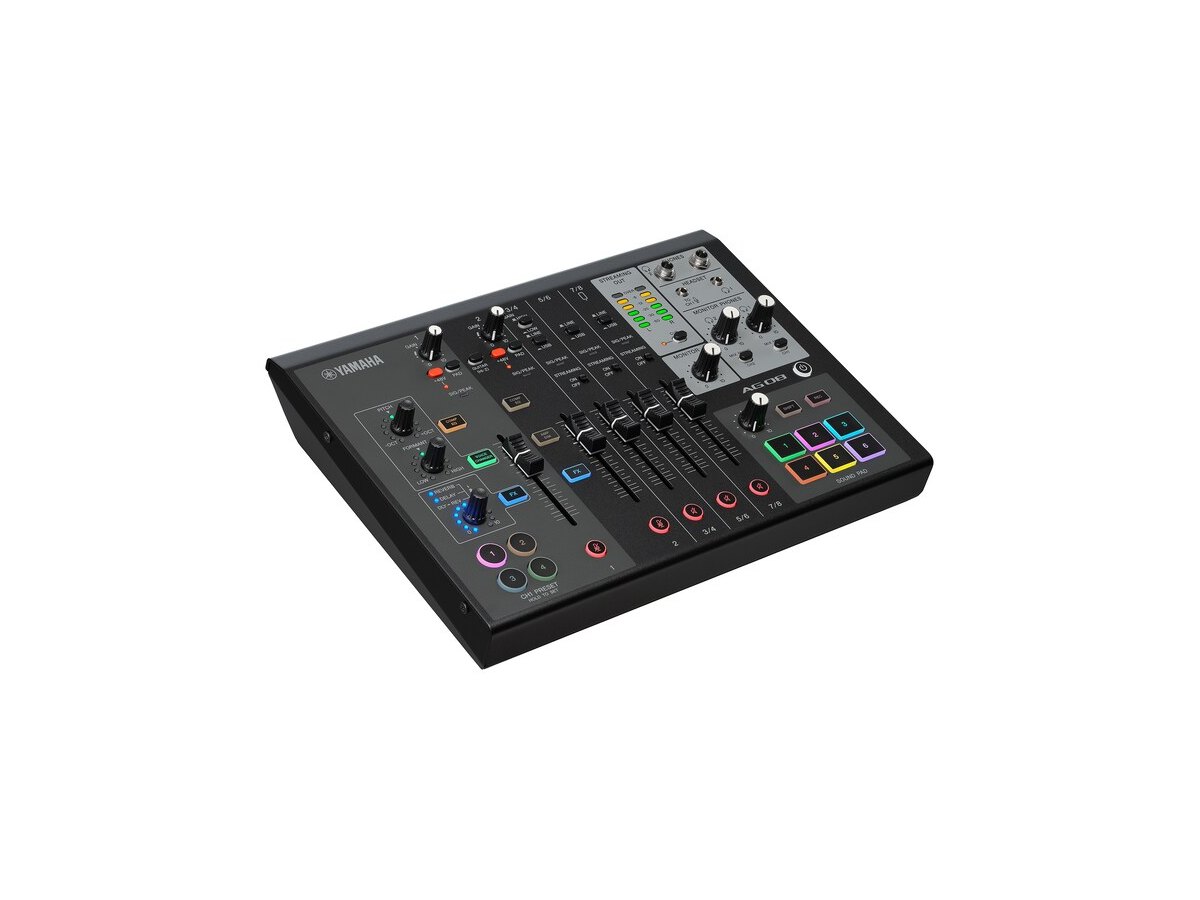

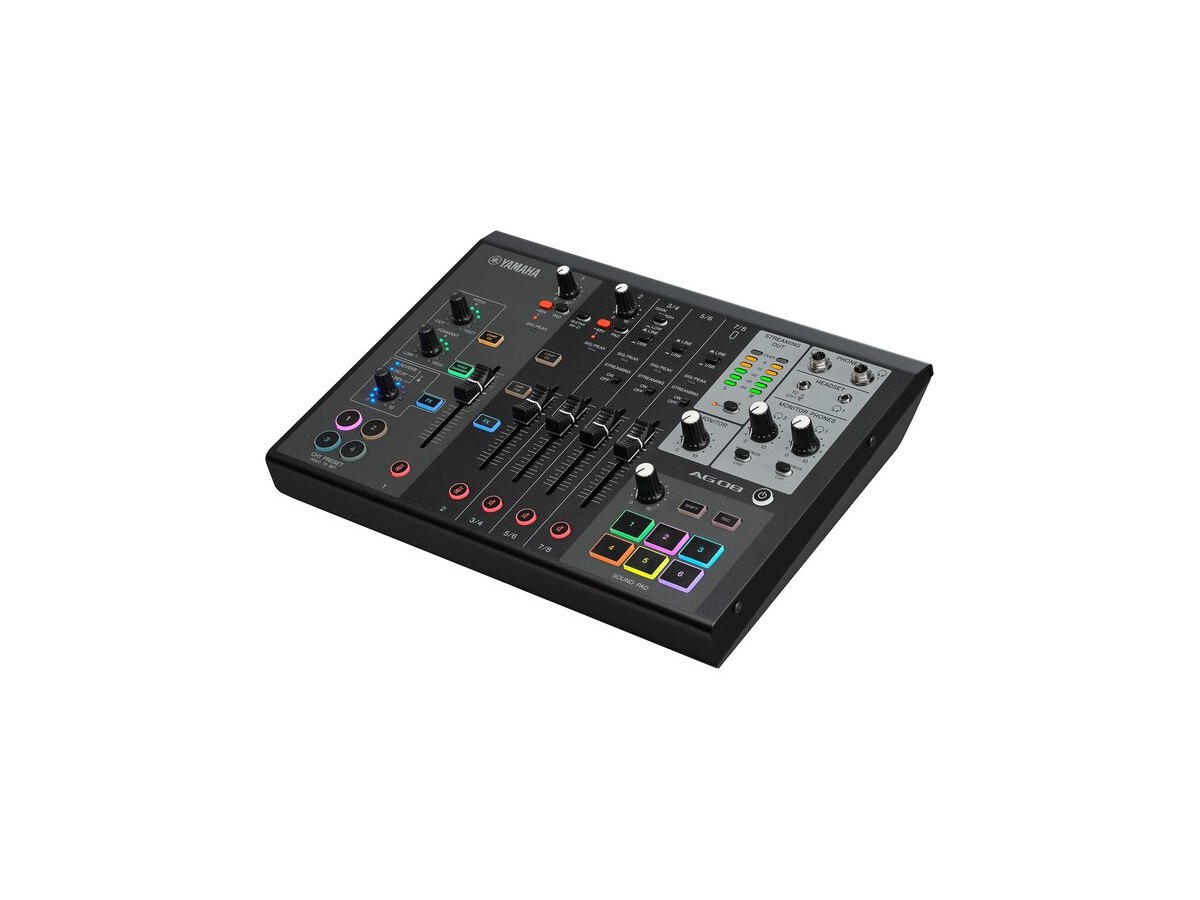

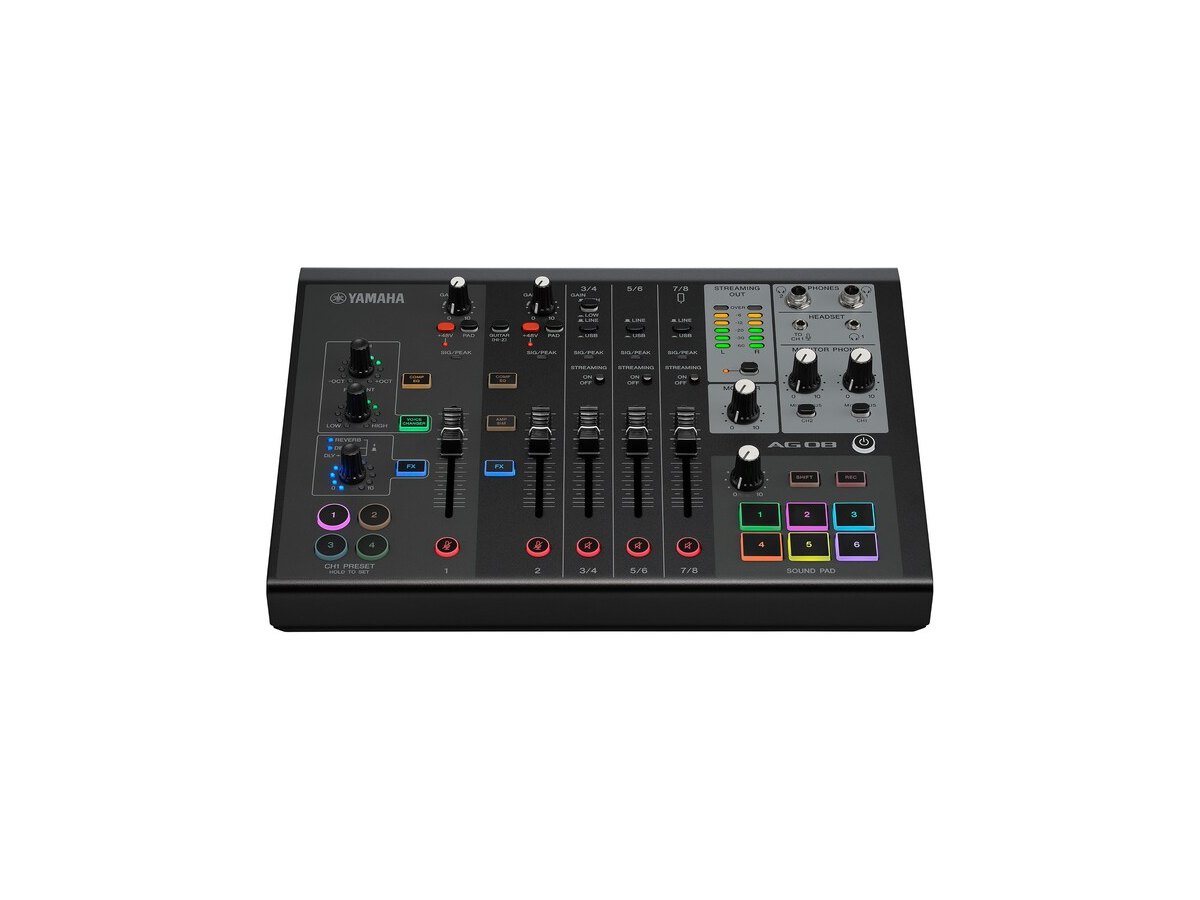

Yamaha AG08 Live Streaming Mixer (Black)

Name: Yamaha AG08 Live Streaming Mixer (Black)
Brand: Yamaha
SKU: AG08B
Price: 40500 PHP

Mixers & InterfacesStreamingNew

SKU: AG08B

₱40,500

Price excludes delivery and installation. Contact us for a formal quotation and current availability.

Flagship 8-channel streaming mixer with five DSP effects including voice changer.

Enquire about this product Call us

Description

LIVE STREAMING MIXER

An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

Two mic/line inputs and two headphone outputs can be used simultaneously

+48 V phantom power on CH1 and 2 for condenser mics or Dl boxes

Four FX preset buttons for CH1, Hi-Z input for guitars on CH2

Three stereo inputs with assignable faders, switchable input source for LINE/USB

4-pole mini input/output (TRRS) on CH7/8

MONITOR outputs (XLR + TRS) and MIX outputs (TRS)

Six sound pads trigger audio samples in real time to add color to live streams

24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)

Specifications

Technical specifications for Yamaha AG08 Live Streaming Mixer (Black)
Type	8-channel live streaming mixer with USB audio interface
Mono Inputs	2 — CH1 combo (Mic +48V / Line) plus headset mic, CH2 combo (Mic +48V / Guitar Hi-Z / Line)
Stereo Inputs	3 — CH3/4 stereo phone, CH5/6 RCA and 3.5mm AUX, CH7/8 TRRS

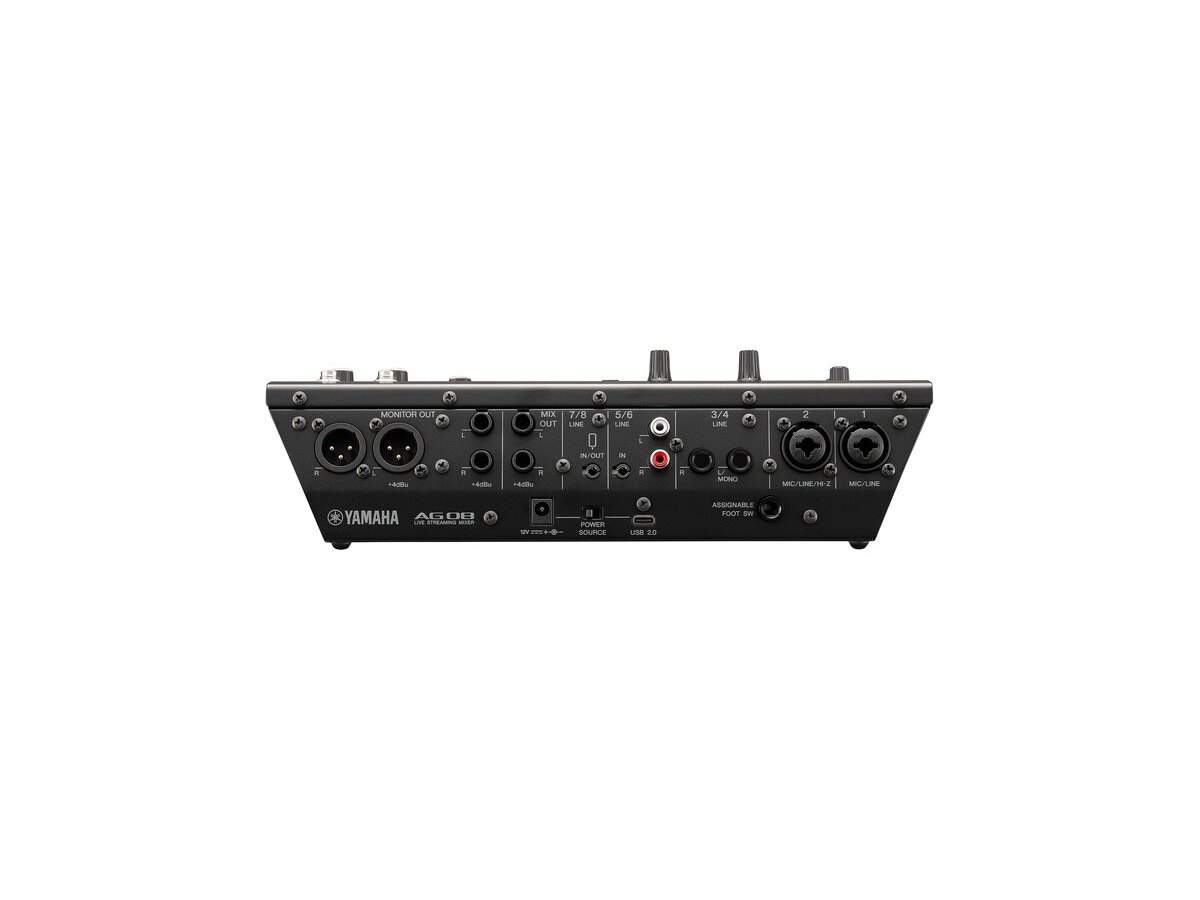

Outputs	PHONES x2, MONITOR OUT L/R (XLR and 1/4" TRS), STEREO OUT (TRS), USB
USB Audio	8 in / 14 out, USB Audio Class 2.0, up to 48 kHz / 24-bit, Type-C
Onboard DSP	Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX), Delay, Ducker, Maximizer
Sound Pads	6, for triggering samples live
Phantom Power	+48V on CH1 and CH2
Power	DC 12V 1.5A or USB-C 5V 1.5A; max 7.5W
Dimensions (W x H x D)	290mm x 88mm x 222mm
Net Weight	2.2 kg
Included	AC adapter PA-150B, USB 2.0 cable, Cubase AI and WaveLab Cast licences
