Barkan BM466XP Full Motion Extra Long TV Wall Mount

Name: Barkan BM466XP Full Motion Extra Long TV Wall Mount
Brand: Barkan Mounts
SKU: BM466XP
Price: 7800 PHP

Mounts & BracketsDisplay MountingNew

SKU: BM466XP

₱7,800

Price excludes delivery and installation. Contact us for a formal quotation and current availability.

Extra long full motion mount, 104 cm extension, 13"–90" screens up to 60 kg.

Enquire about this product Call us

Description

Extra long dual arm full motion wall mount with a 41" / 104 cm extension, for screens from 13" to 90" weighing up to 132 lbs / 60 kg.

The longest arm in the range: 90° swivel for screens up to 77" / 195.6 cm and 70° swivel for screens up to 90" / 228.5 cm. Three pivots rotate 180° at the wall, fold 360°, and swivel 180° at the screen plate, with 0° to 15° tilt and ±5° levelling. It folds back to 4" / 10 cm.

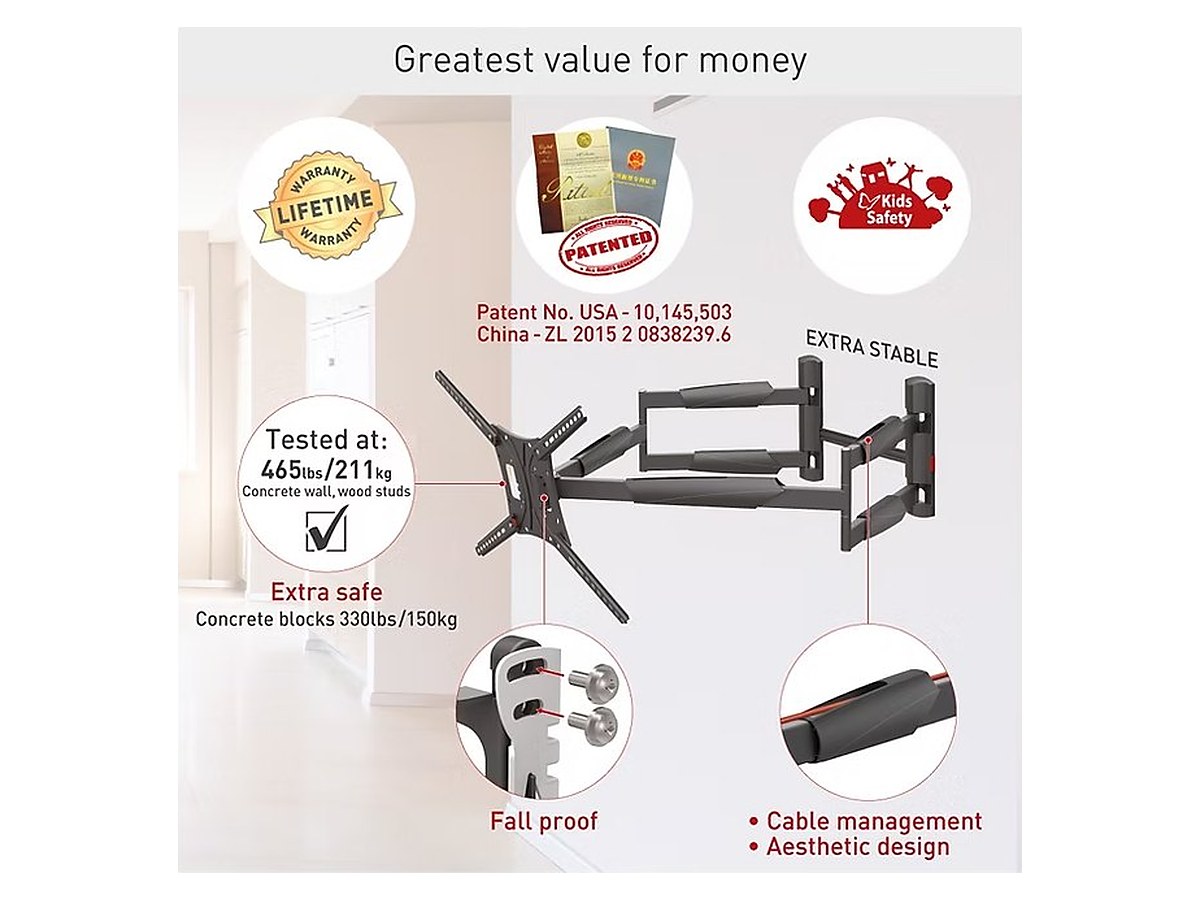

Safety tested at 465 lbs / 211 kg on wood-stud and concrete walls, and 331 lbs / 150 kg on concrete block. Suitable for corner installation. Lifetime warranty.

Specifications

Technical specifications for Barkan BM466XP Full Motion Extra Long TV Wall Mount
Screen Size	13" – 90"
Movement	Full motion — swivel and tilt, extra long dual arm
Maximum Load	132 lbs / 60 kg
VESA	75x75 to 600x400 mm; non-VESA up to 600x400 mm
Distance from Wall	4" / 10 cm folded to 41" / 104 cm extended

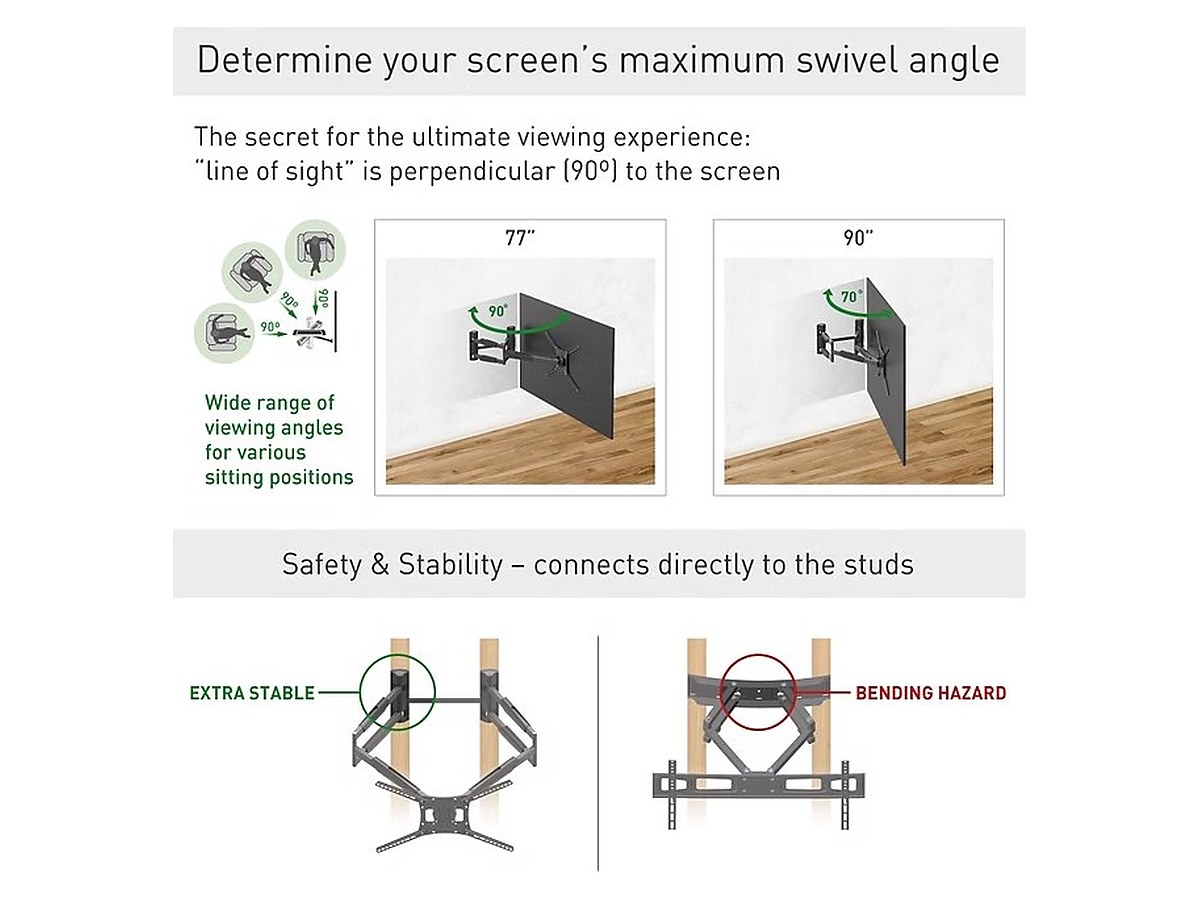

Swivel Range	90° for screens up to 77"; 70° for screens up to 90"
Pivots	3 — 180° at the wall, 360° fold, 180° at the screen plate
Tilt	0° – 15°
Levelling	±5° after installation
Safety Tested	465 lbs / 211 kg on wood-stud and concrete; 331 lbs / 150 kg on concrete block

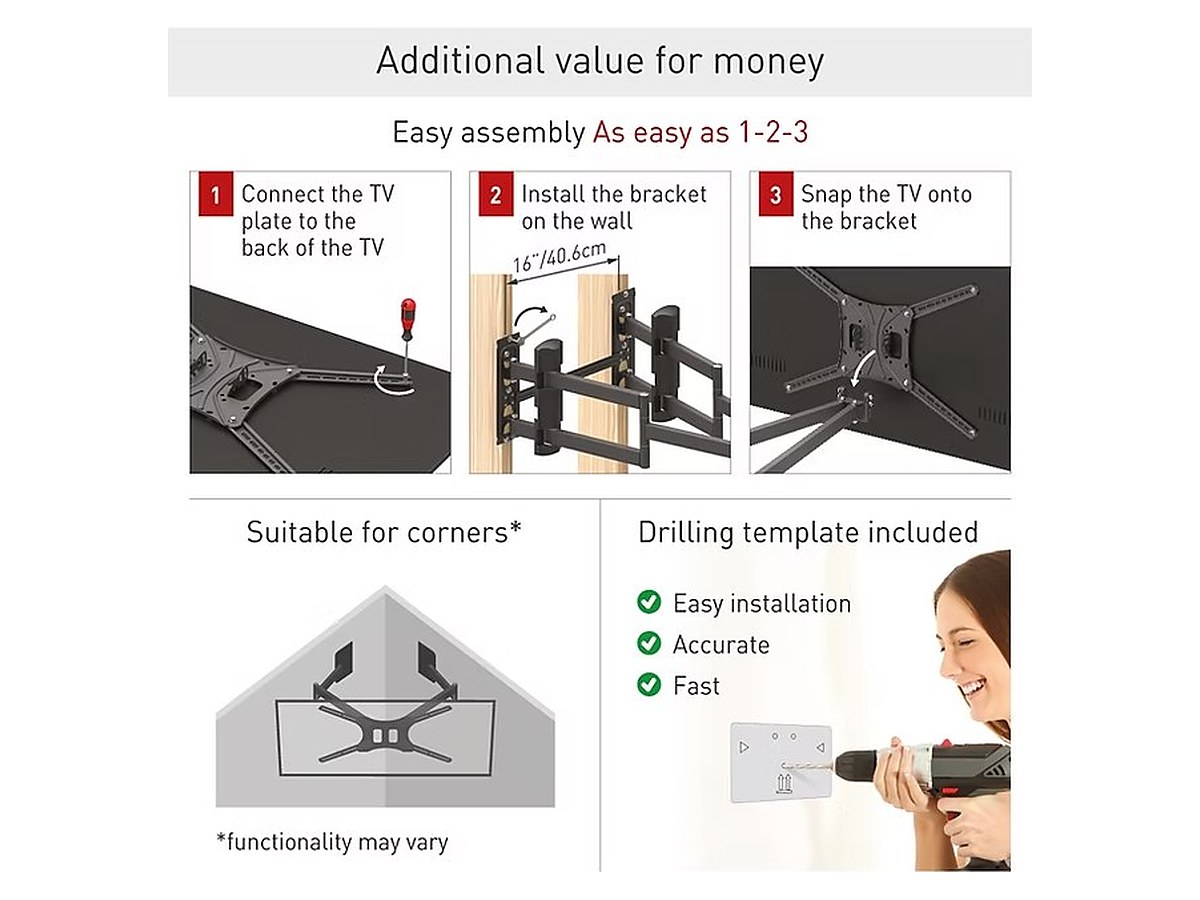

Wall Type	Wood-stud walls with studs 16" apart
Colour	Black
Warranty	Lifetime
